KARTELL

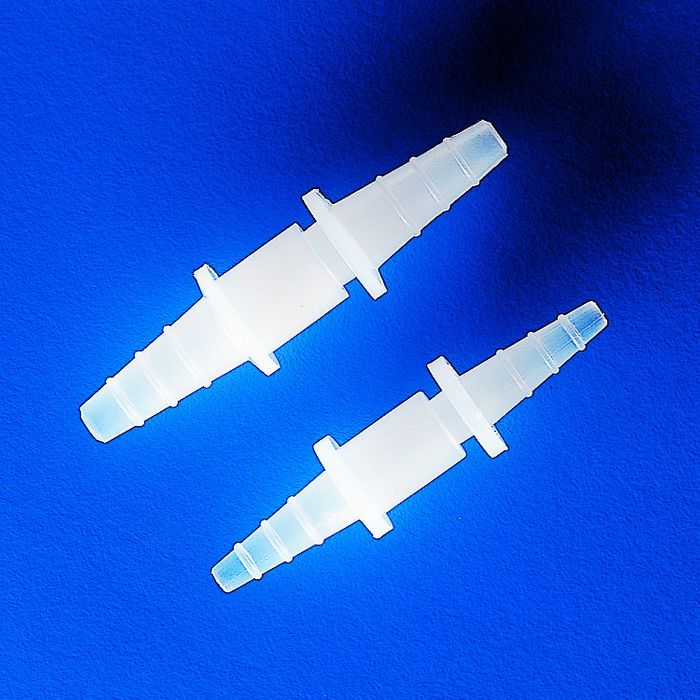

CONNECTOR - DISCONNECT - TAPERED (PE)
Art ID:
434
Art ID:
435
Art ID:
436
Art ID:
535
Art ID:
536
Art ID:
537
Description
PRODUCT DESCRIPTION
Autoclavable. Dimensions are shown as both nominal and exact as elasticity of hoses will influence the choice of size. Use hoses selector Art. 1759 to determine "grip". This will then give equivalent crest dimension for the particular connector concerned. These quick disconnectors are useful for joining hoses of glass, rubber or plastic. Connectors fit tightly together. Replace expensive adapters.
TESTED ACCORDING TO REACH REGULATION 1907 / 2006 ANNEX XVII
PRODUCT SPECIFICATION
| Art. | Nominal O.D. | Crest O.D. mm max/min | Bore mm |
|---|---|---|---|
| 434 | 4 / 5 / 6 | 3.5 / 6.0 | 1.6 |
| 435 | 6 / 7 / 8 | 5.3 / 7.6 | 2.7 |
| 436 | 8 / 9 / 10 | 7.2 / 9.7 | 3.6 |
| 535 | 10 / 11 / 12 | 9.3 / 12.2 | 5.5 |
| 536 | 12 / 13 / 14 | 11.0 / 14.4 | 7.3 |
| 537 | 14 / 15 / 16 | 13.2 / 16.0 | 8.8 |
