KARTELL

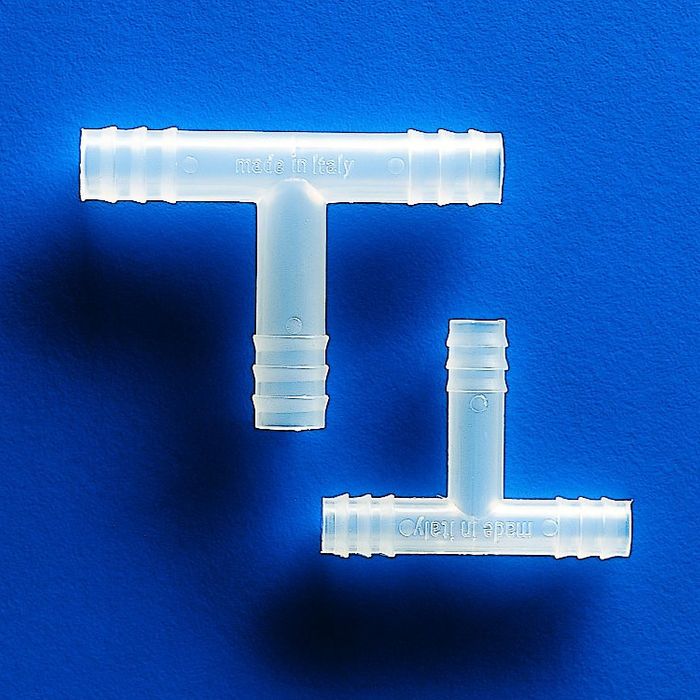

CONNECTOR - T- UNTAPERED (PP)
Art ID:
459
Art ID:
460
Art ID:
461
Art ID:
462
Art ID:
463
Art ID:
520
Art ID:
521
Description
PRODUCT DESCRIPTION
Autoclavable. Dimensions are shown as both nominal and exact as elasticity of hoses will influence the choice of size. Use hoses selector Art. 1759 to determine "grip". This will then give equivalent crest dimension for the particular connector concerned. Excellent chemical and temperature resistance. With serrations to hold hoses tightly and prevent slipping.
TESTED ACCORDING TO REACH REGULATION 1907 / 2006 ANNEX XVII
PRODUCT SPECIFICATION
| Art. | Nominal O.D. | Valley/Crest O.D. mm | Bore mm |
|---|---|---|---|
| 459 | 4 | 3.3 / 3.6 | 1.6 |
| 460 | 6 | 4.5 / 5.4 | 3.7 |
| 461 | 8 | 6.9 / 7.6 | 4.4 |
| 462 | 10 | 8.7 / 9.5 | 6.3 |
| 463 | 12 | 10.7 / 11.5 | 8.2 |
| 520 | 14 | 12.7 / 13.7 | 10.0 |
| 521 | 16 | 14.7 / 15.6 | 12.1 |
