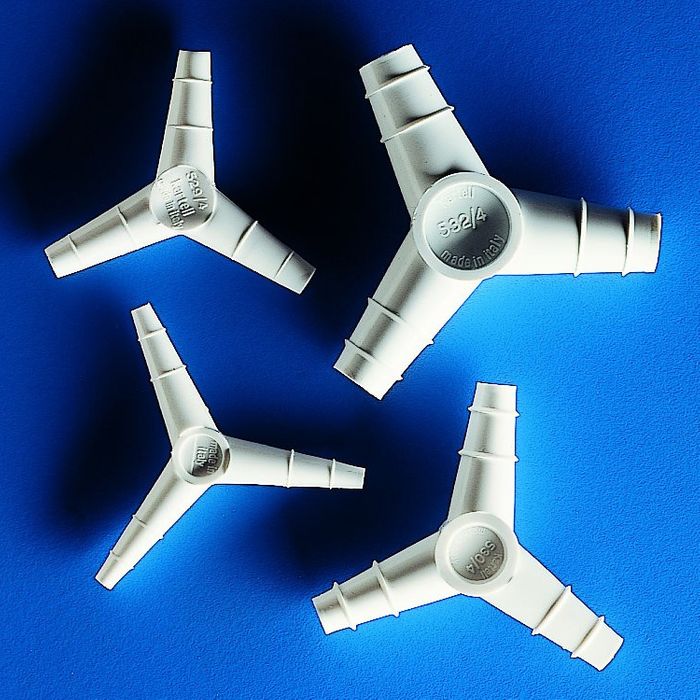

CONNECTOR - Y (120°) - TAPERED (PP)
Art ID:
527
Art ID:
528
Art ID:
529
Art ID:
530
Art ID:
531
Art ID:
532
Description
PRODUCT DESCRIPTION
Autoclavable. Dimensions are shown as both nominal and exact as elasticity of hoses will influence the choice of size. Use hoses selector Art. 1759 to determine "grip". This will then give equivalent crest dimension for the particular connector concerned.
TESTED ACCORDING TO REACH REGULATION 1907 / 2006 ANNEX XVII
PRODUCT SPECIFICATION
| Art. | Nominal O.D. | Crest O.D. mm max/min | Valley O.D. mm max/min | Bore mm |
|---|---|---|---|---|
| 527 | 4 / 5 / 6 | 4.1 / 5.1 | 3.8 / 4.7 | 1.5 |
| 528 | 6 / 7 / 8 | 5.5 / 7.2 | 5.2 / 7.0 | 2.7 |
| 529 | 8 / 9 / 10 | 7.0 / 9.2 | 6.9 / 8.8 | 4.7 |
| 530 | 10 / 11 / 12 | 9.9 / 11.5 | 9.8 / 10.7 | 5.5 |
| 531 | 12 / 13 / 14 | 12.0 / 14.2 | 11.1 / 13.2 | 7.6 |
| 532 | 14 / 15 / 16 | 13.7 / 15.5 | 13.0 / 14.9 | 9.6 |
